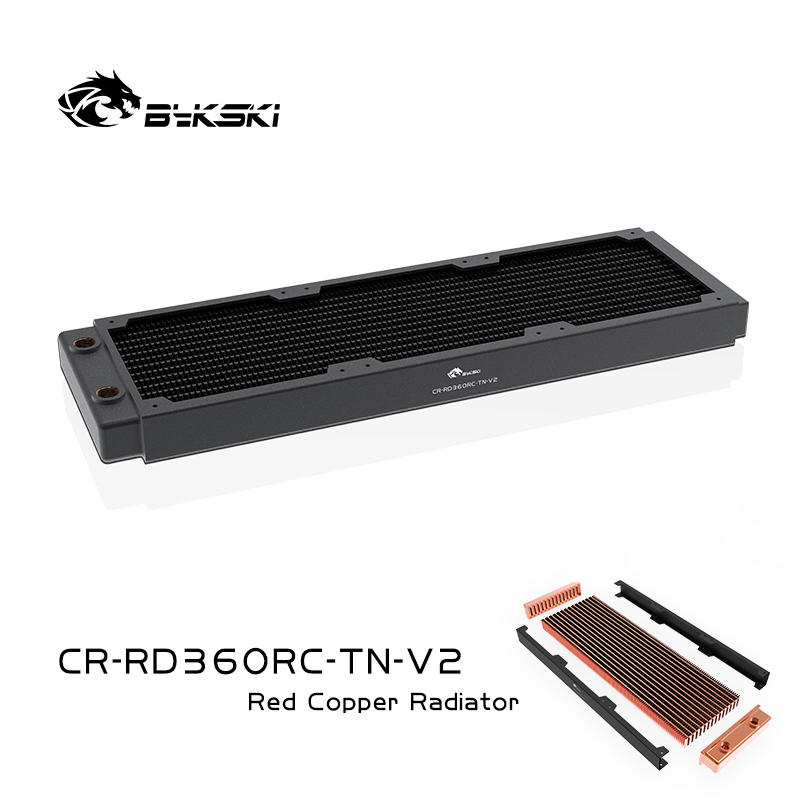

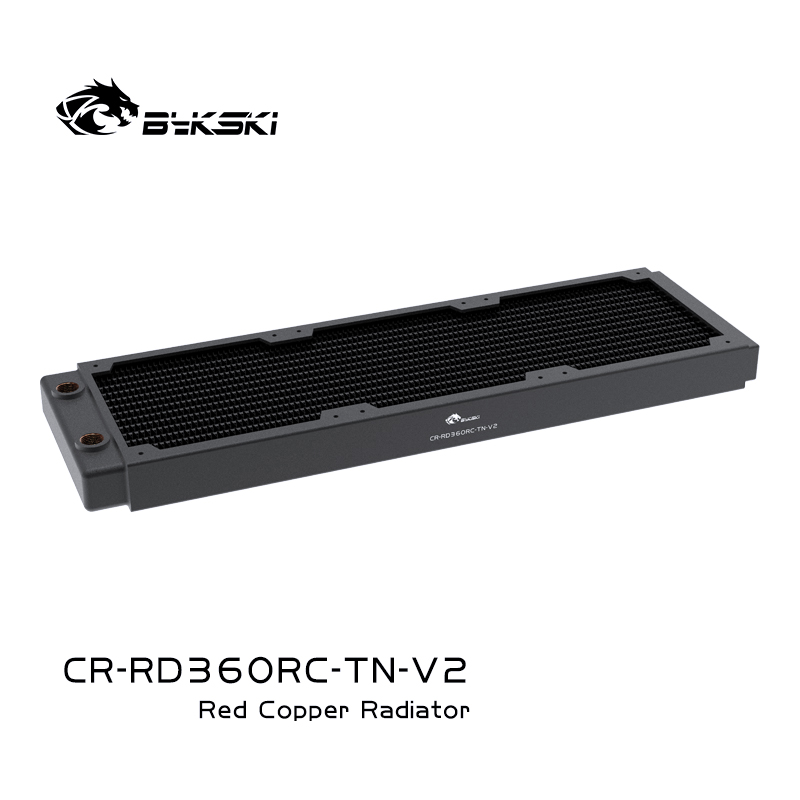

Bykski 360mm x 30mm Copper Radiator

360mmサイズ　30mm厚　ラジエター

主要部分は全て銅で出来たラジエターです、強度を持たせる為にサイドブラケット部分のみ鉄で出来ています。

Made in China

Product Code : CR-RD360RC-TN-V2

Description
Bykski CR-RD360TR-TN-V2 radiator is designed as a single row of copper channels. The thickness of the radiator is 30mm which allows this radiator to be mounted in smaller profile locations. The water channels and wave fins are made of red copper with a thermal conductivity up to 401 w/(M.K.). There are 14 water channels aligned in a single row.

FEATURES
14 Channel Design
Industry Standard G1/4 Thread
High Quality Copper Design

SPECIFICATIONS

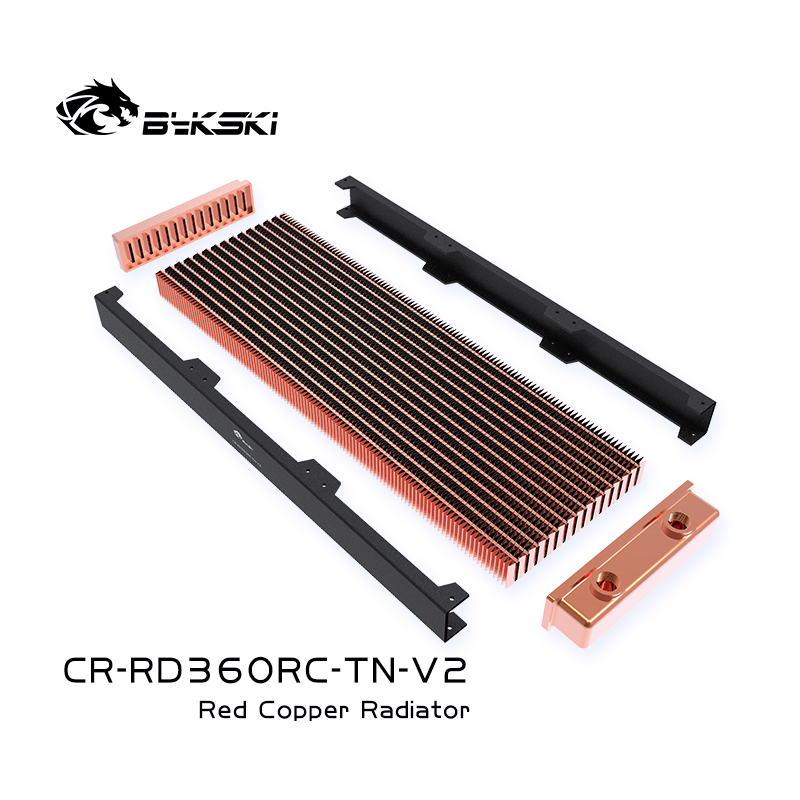

Material:Red Copper / Iron side plates (not in contact with coolant)
Dimensions:395.5mm x 122mm x 30mm
Ports:2

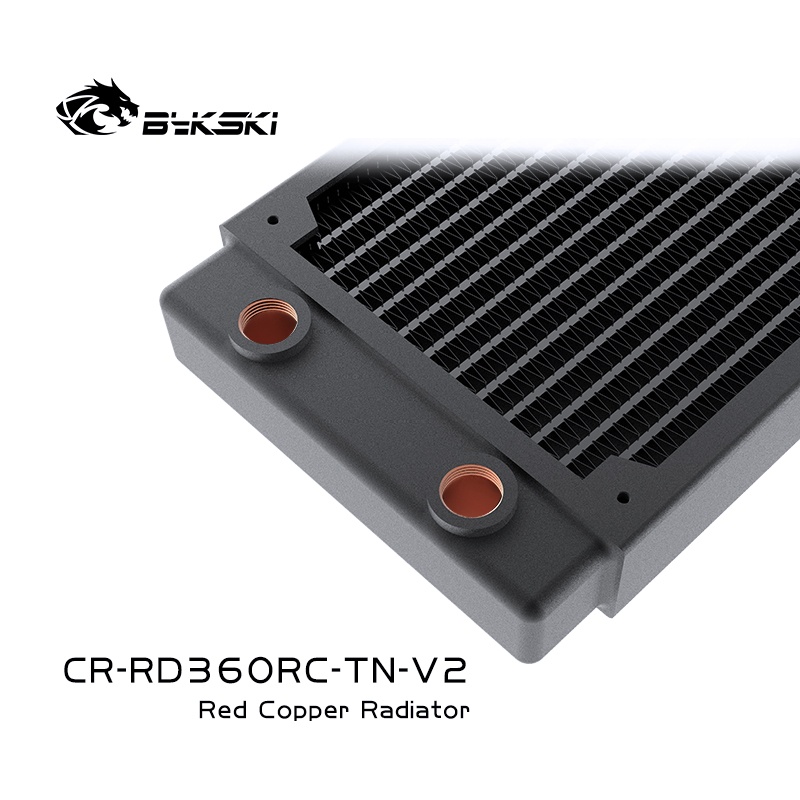

Port Thread:G 1/4
Mount Thread:M3
Channels:14
Pressure:1.5bar
Weight:850 g
Fin Density:14FPI

COMPATIBILITY
Fans:120mm

INCLUDED PARTS
1x Radiator
12x M3 x 30mm Mounting Hardware

BYKSKIの製品に関してはお客様の手元に届いた日から起算して10日間の初期不良対応のみとさせて頂きます。

商品到着後直ぐに動作確認を行って下さい。
