在庫処分の為、ジャンク扱いで販売します。
MT1806/2300kv BL Motor CCW Self-lock Cap
Tarot 250C レーシングクワッドに最適です。
反時計回りネジのプロペラロックキャップ（黒色）仕様です。
5インチ3枚羽（白色）のプロペラ（正反一対）が付属しています。
製品仕様
Tarot 1806-2280KV self-locking brushless motor suitable for TAROT Mini 200 (TL200A / TL200B) TAROT Mini 250 (TL250A / TL250B) and other multi-axis through the machine.Tarot optimizes the 1806 brushless motor, so that the center of gravity lower and more in line with multi-rotor through the machine design requirements.

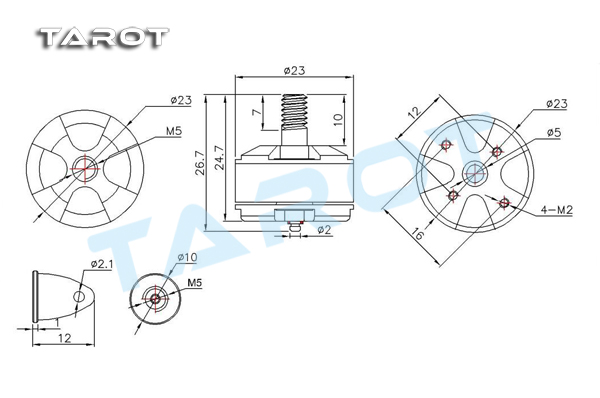

MT1806 brushless motor with 0.20mm ultra-thin high-efficiency silicon steel, the use of thin silicon steel motor with low heat to make more efficient features.Propeller mount with the motor cover using the integrated molding process, forming one threaded spindle motor cover, can be installed directly paddle clips (native propeller shaft folder structure) its concentricity can get the best guarantee.Motor cover with high efficiency active bulk pad designed to achieve lower operating temperature means higher productivity. MT1806 brushless motor has a balancing performance, every single motor ship before the whole system have been detected with high precision balancing test, in order to ensure the stability of the motor running time.Motor base for the multiple sets of mounting holes (hole see photo), compatible with mainstream rack-mount on the market today, it retains the look and consistency of conventional motor, the protective effect of a high floating coil play.
仕様:
- バッテリー: 2～3S
- プロペラシャフト径: 5MM
- Propeller: 5 inch clover paddle TL300E
- White resistance: ≤4mΩ
- Stator diameter: 18MM
- Load current: 0.4A-0.7A
- Stator Thickness: 6.0
- Stator: 12
- Motor poles: 14
- Speed: 2300KV ± 5%
- Motor outer diameter: 23MM
- Axial Diameter: 2MM
- Motor Length: 26.5MM
- Weight: 18G
付属品:

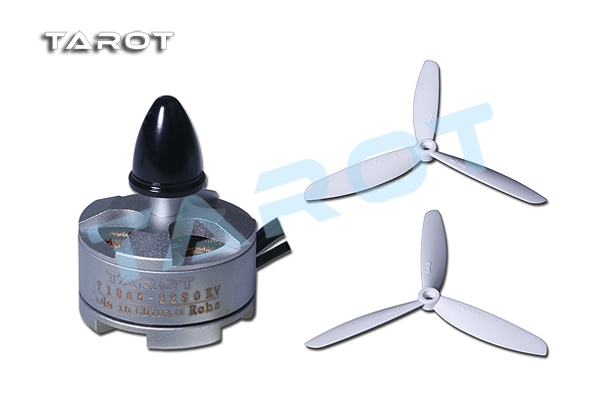

- MT1806/2300kv BL Motor CCW Self-lock Cap × 1
- TL300E 5インチ3枚羽プロペラ × 1対
