在庫処分の為、ジャンク扱いで販売します。
MT2204/2300kv BL Motor CW Self-lock Cap

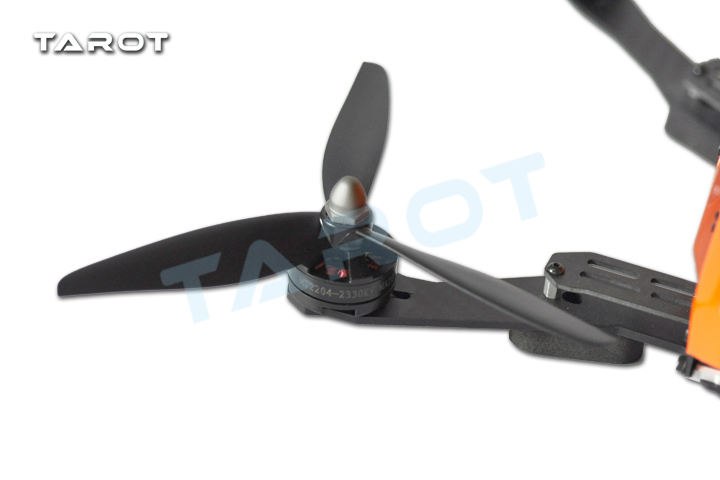

Tarot 280C レーシングクワッドに最適です。
時計回りネジのプロペラロックキャップ（黒色）仕様です。
6インチ3枚羽（黒色）のプロペラ（正反一対）が付属しています。
製品仕様
Tarot 2204-2300KV self-locking multi-axis brushless motor suitable for 280/300 and other crossing machine. Tarot optimizes this brushless motor, its center of gravity lower and more consistent across the multi-rotor aircraft design requirements.
MT2204 brushless motor with 0.20mm ultra-thin high-efficiency silicon steel, the use of thin silicon steel motor with low heat to make more efficient features. Propeller mount with the motor cover using the integrated molding process, forming one threaded spindle motor cover, can be installed directly paddle clips (native propeller shaft folder structure) its concentricity can get the best guarantee.
Motor cover with high efficiency active bulk pad designed to achieve lower operating temperature means higher productivity. MT2204 brushless motor has a balancing performance, every single motor ship before the whole system have been detected with high precision balancing test, in order to ensure the stability of the motor running time. Base mounting holes Motor 16MM / 19MM, compatible with mainstream rack-mount on the market today, retains the look and consistency of conventional motor, high-floating coil protection.
仕様:
- バッテリー: 3S プロペラシャフト径: 5MM
- Propeller: 6 inch clover paddle TL400E
- White resistance: ≤4mΩ
- Stator diameter: 22MM
- Load current: 0.4A-0.8A
- Stator Thickness: 4.0
- Stator: 12
- Motor poles: 14
- Speed: 2300KV ± 5%
- Motor outer diameter: 28MM
- Axial Diameter: 3MM
- Motor Length: 39MM
- Weight: 24.5G

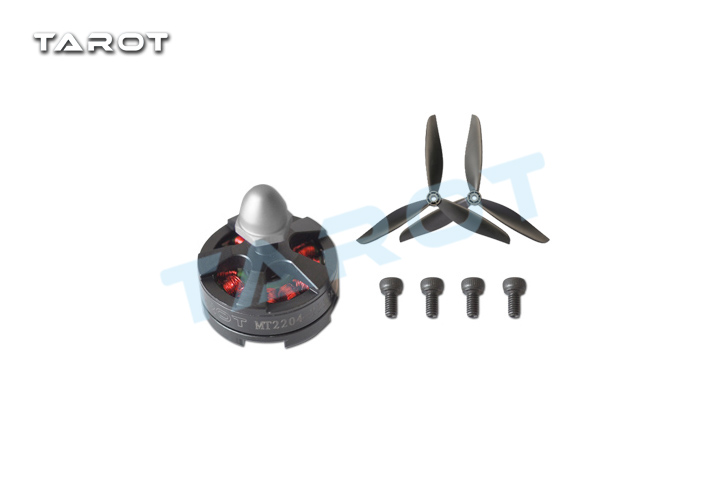

付属品:
- MT2204-2300KV CW self-locking screw motor × 1
- M2.5 × 5MM キャップヘッドネジ × 4
- TL400E6 6インチ3枚羽プロペラ × 1対
