在庫処分の為、ジャンク扱いで販売します。

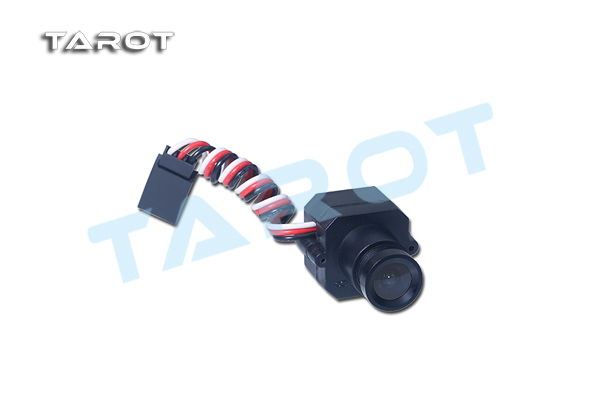

TAROT FPV Camera 520TVL NTSC 12V

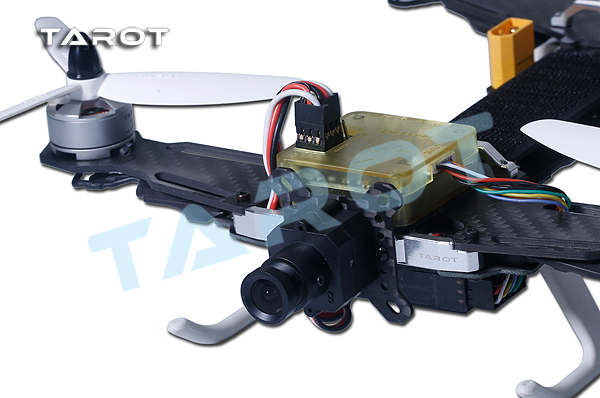

Tarot 250Cや280Cのカメラマウントにぴったり装着出来るFPV用カメラになります。
製品説明:
TAROT custom 520TVL small high-definition color video camera (FPV aerial camera) with 100-degree full glass wide-angle lens focal length 2.8MM for mini200 / 250/300 through a small machine, FPV model aircraft aerial areas, monitoring. Products are small, built-in step-down module, can be directly connected 3S11.1V use lithium polymer battery.
配線方法
赤ケーブル:電源プラス
黒ケーブル:電源マイナス
白ケーブル:映像信号出力
Product parameters:
Definition: 520TV Lines (HD)
Effective pixels: NTSC = 720 (H) × 487 (V)
Video Format: NTSC
Sensitive chip: 1/3 inch HD Color CMOS
Video Output: 1.0Vp-p / 75Ω
Minimum illumination 0.008Lux (ultra low-light)
Power consumption: 40MA ± 10%
Operating voltage: DC5-15V ± 10%
Synchronization System: Internal Synchronization SNR: more than 50dB
Electronic shutter (N) 1 / 60-1 / 10000s, (P) 1 / 50-1 / 10000s
Working temperature: 0 ℃ ~ 45 ℃
Product Specifications:
520TVL mini HD color camera × 1 (21 * 26 * 30mm ± 3mm) 15g
