450DFC Split Lock Rotor Head Assy Silver

在庫処分の為、ジャンク扱いで販売します。

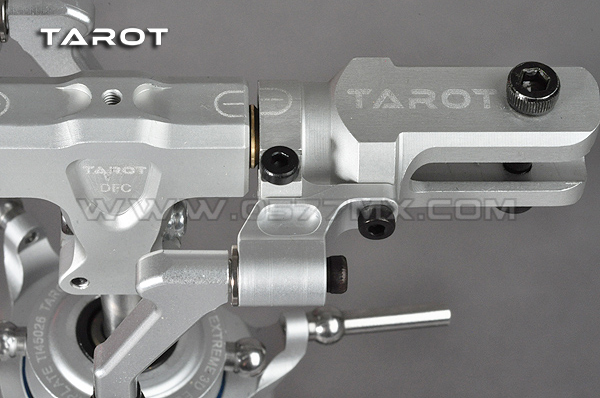

Tarot 450 DFC Split Lock Rotor Head Assembly Silver

450　DFCヘッド

スワッシュプレートは付属しておりません、メインシャフトは1本付属しています。

Product description :

For TAROT450 DFC (TL45162/TL48015) etc. DFC rotor head modification.

Innovation oblique push rod structure design, unique way of partially balanced hinged roll torque .

Using 6061-T6 aluminum alloy full CNC multi-axis machining technology .

Trapezoidal horizontal transfer of the rubber gasket can better suppress the load.

Ultra-low center of gravity with a short shaft design, the level is close to the body center of gravity of the rotor .
New DFC Main Rotor Housing V-shaped spindle with three-point locking design .

New DFC Main Rotor Housing and Main Rotor Holder top laser mark.

DFC strengthen horizontal pad using 85 ° integrally molded hard rubber ,
The newly designed large-size bearing clamp center thrust bearing .

New anti- radiation horizontal tensile overall design uses 480 specifications.

Thrust bearings need to pay attention when installing , IN outer ring be installed near a large position in the joint , which can effectively shun
Slip passing tension. Thrust ball bearing copper concave inward to prevent oil thrown .

Supporting ID:

450 DFC Anti- shot horizontal TL48009

450 new large bearing rotor holder main group moderators TL48013

450DFC locking type Main Rotor Housing TL48018

450DFC Main Rotor Holder connecting arm TL48026

450DFC tilt rod TL48027

450DFC horizontal axis washer TL45000

450DFC horizontal axis washer TL45167

Specifications:

• 450DFC Main Rotor Housing Set x 1
• 450DFC spindle x 1 [ 108MM ]
• 450 DFC horizontal axis washer x 2 (Φ4xΦ7.0x4.0mm)
• 450 DFC spindle locking collar screw x 1 (M2.5 x10.5mm)
• M 2.5 slip nut x 1
• Moderators large metal bearing rotor holder × 2

Bearing × 2 (Φ4.0xΦ8x3.0mm)
Thrust bearing × 2 (Φ4.0xΦ9x4.0mm)
Washers × 2 (Φ4xΦ6.5x0.5mm)
Bearing × 2 (Φ4.0xΦ9x4.0mm)
Washers × 2 (Φ2.5xΦ4.5x0.3mm)
Cup head screw × 2 (M3 × 15MM)
M3 slip nut × 2
450 DFC Anti- shot horizontal TL48009 (Φ4.0x54.0mm) × 1
450 DFC Main Rotor Holder metal connecting arm x 2
Franc bearing x 2 (Φ2xΦ5x2.5mm)
Plane bearing x 2 (Φ2xΦ5x2.5mm)
M2.0 cup head screw x 2 (M2.0x9mm)
M2.0 cup head screw x2 (M2.0x5mm)
450 Metal DFC tilt rod x 2
M2.5 Set screw x 2 (M2.5x10mm)
500 DFC Main Rotor ball head buckle TL50186 x 2
M2.0 Cup Hexagon collar screw x 2 (M2.0x15mm)
